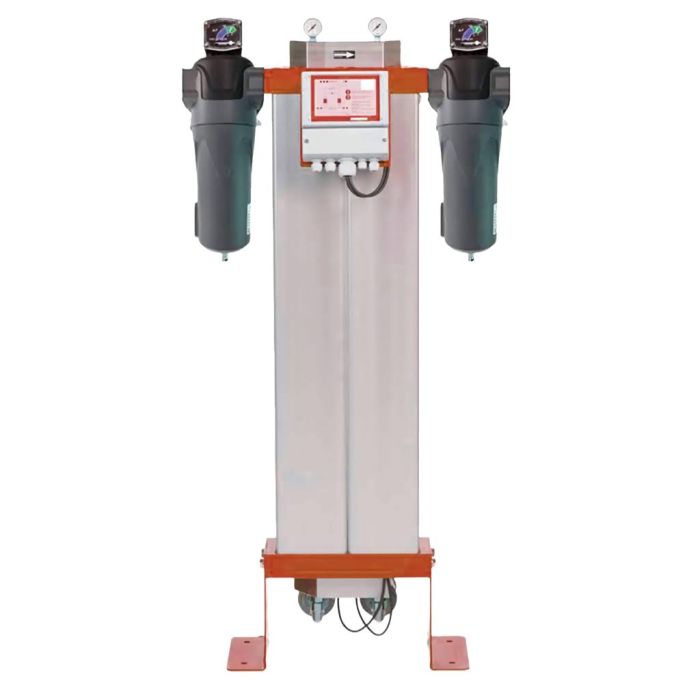

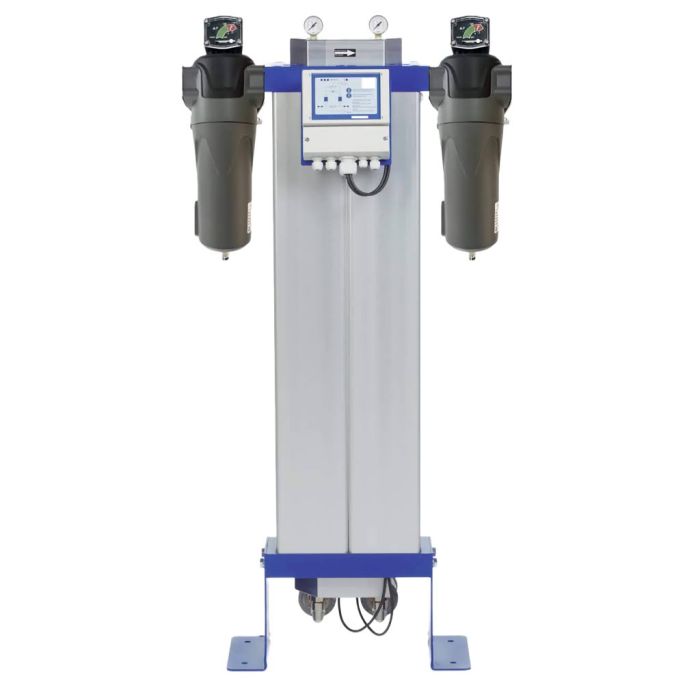

Airwave, 53 c.f.m. -40, Desiccant, Adsorption Dryer

At Compressors.Online, we specialize in system solutions for the stable drying of compressed air and gases.

Our Adsorption Dryers are designed to meet the demands of various industrial applications, ensuring both safety and cost-effectiveness.

With advanced technology and robust construction, these dryers effectively remove moisture, protecting your equipment and enhancing overall system performance.

Trust Compressors.Online for reliable and efficient drying solutions tailored to your operational needs.

The solid and rugged construction provides long uptime, low susceptibility and trouble-free installation.

Specifications

Capacity - 90m3/h - 53 c.f.m.*calculated at 1 bar (abs.) and 20°C at 7bar g working pressure

Inlet - Outlet 1/2" B.S.P. Female

Pre- and After Oil Removal High Efficiency Coalescing filters with Automatic Float Drain and Differential Gauge

Weight = 65kg

Voltage = 230V Frequency 50/60 Hz

Dimensions (mm)

A = 1119mm, B1 = 1000mm, B2 = 1000mm, C = 534mm, D = 442mm

Standard scope of delivery in all AWAC-ATK-APN dryer units

Control - Display

display of adsorption/regeneration cycle
microprocessor fully electronic
energy saving compressor synchronism control
cycle times variably adjustable (selectable)
status display and potential-free alarm signal for service

Optional Extras Also Available

Dew point control

Dew point control including inlet air monitoring

moisture indicator

All sizes can be fixed to the floor.
An aluminum profile developed by us together with the globally active SAPA Group offers optimum flow conditions in the adsorber bed and ensures a safe pressure dew point even due to an oversized desiccant volume. In the standard version, the AWAC-ATK-APN units achieve a safe pressure dew point of -40°C .

In the optional AWAC-ATK-APN -70 version, they achieve a pressure dew point of -70°C and thus offer maximum operati- onal and process reliability.

Simple and fast service

The AWAC-ATK-APN adsorption dryers are designed to offer several advantages over competitive products.

For example, for the desiccant change neither an overpriced cartridge has to be changed nor the upper and bottom plates of the dryers have to be dismantled.

This work is very time-consuming for dryers from other manufacturers and always involves a risk in the event of servicing.

The generously dimensioned emptying openings in the lower plate and the filling openings in the upper plate offer the advantage of safe and quick emptying (possible with a vacuum cleaner) as well as quick filling with new desiccant.

The two service blocks on the upper and lower plate contain all the parts required for service.

After simple disassembly, all service work is carried out in a relaxed posture, elimina- ting the need for laborious work directly on the dryer. Important: The dryer remains fixed in the overall installation.

Operational safety in the sense of the specialist company

Two large silencers offer considerably more safety than most devices on the market, both for expansion when switching the flow direction and when discharging the regeneration air.

They increase the risk of clogging with desiccant dust by using only one small silencer. We are convinced that this system offers more safety, as backflow into the dryer is hardly possible due to the large silencer surface.

Pre- and Oil Removal High Efficiency Coalescing filters are of course included with Automatic Float Drain and Differential Gauge in the standard scope of delivery and offer an optimal pre-filtration of incoming particles and water or oil droplets.

This significantly increases the operational reliability and service life of the AWAC-ATK-APN units.
